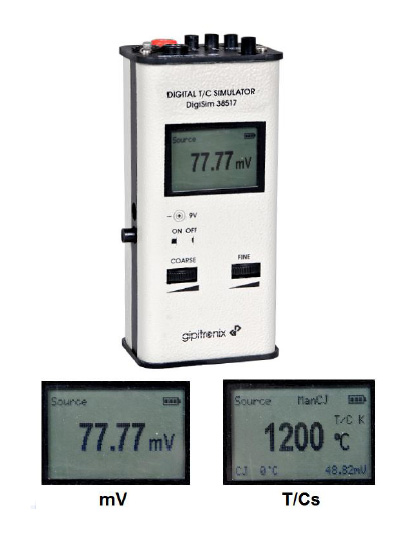

T/C Simulator (DigiSim 38517)

The T/C Simulator (DigiSim 38517) is a micro-controller based portable, battery-operated, precision instrument designed for sourcing and measuring mV & T/C signals. A graphical (128x64) LCD with backlight gives excellent user interface. It is designed to calibrate instruments taking either T/Cs or mV as an input and retain its precision & repeatability over long periods in worst environmental conditions. An exceptionally stable voltage source provides continuously variable precision output signals with two ten-turn potentiometers.


  • Simulates & measures Ohms & RTDs
  • High precision, accuracy, reliability & longevity
  • Graphical(128x64) LCD with backlight for excellent UI
  • Simultaneous display of temperature & mV
  • Auto or Manual cold junction compensation (CJC)
  • Continuous indication of cold junction temperature
  • Compact in size and built for toughest environments
  • Unique self-check facility ensures reliable operations
  • Powered by AC/DC adapter or 9V Ni-Mh battery


  • Simulates & measures T/Cs with Auto/Manual CJC
  • Calibrates temperature indicators with T/C input
  • Works as voltage(mV) source
  • Calibrates temperature controllers and transmitters


Resistance T/Cs[1]

Type B 250 to 1820°C

Type B -200 to 1000°C
-10 to 80 mV Type J -210 to 1200°C

Type K -200 to 1372°C

Type N -200 to 1372°C
  Type R -50 to 1768°C
  Type S -50 to 1768°C

Type T
-200 to 400°C
10 μV 0.1 °C


Display Specifications

Display Graphical (128x64) LCD with backlight
Function mV T/Cs
Resolution 10μV 1°C

Other Specifications

Input Impedance > 1MΩ
Output Impedance < 0.05Ω
CJ Compensation Automatic and Manual CJ compensation
CJ Error 1°C for 5 ≤ TA ≤ 55°C
Effect of leads 1°C for lead resistance of 100Ω per lead
Mains Operation Power jack for AC/DC adapter/charger (230VAC,50Hz to 10.5VDC,100mA)
Input Protection I/O terminals are protected upto 24 VDC
Storage Temperature 0 to 70°C w/o batteries and accessories
Humidity Less than 90% Rh (Non-condensing)
Operating Temperature 5 to 55°C
Zero Drift < 1dgt per 10°C outside the range of 22 ≤ TA ≤ 32°C
Span Drift < 0.0015% of rdg per °C


Function mV T/Cs
Resolution 10μV 1°C
Accuracy ± 0.02% rdg ± 0.01% FS ± 2 dgt ± 0.05% rdg ± 0.05% FS ± 1 dgt
Self-check 77.77 ± 2 digits Not Applicable

Power Supply options are as follows:

Battery Type Battery Life Status
9V Ni-Mh battery with longer life for field use 10 - 12 hours in continuous use Displays battery level using status bars and "LoBAT"
Humidity Less than 90% Rh (Non-condensing)
Zero Drift < 1dgt per 10°C outside the range of 22 ≤ TA ≤ 32°C
Span Drift < 0.0015% of rdg per °C
Storage Temp 0 to 70°C w/o batteries and accessories
Operating Temperature 5 to 55°C
Enclosure Dimension 75(W) x 150(H) x 55(D) mm
Enclosure Finish Powder Coated
Enclosure Weight 600g w/o batteries

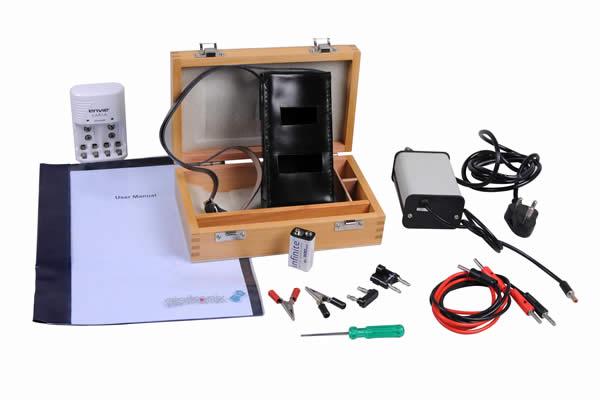

Accessories Included BS-5(4mm) probes, crocodile clips, SP3, screw driver, leather case, AC/DC adapter
Optional 9V Ni-Mh battery, external battery charger, wooden case
Documentation Included Warranty certificate[1], Calibration certificate[2], User manual, T/C temperature tables
Optional NABL Calibration certificate
