RTD (Fixed Point) Simulator TestKit 18591

The Series 18591 Test Kits are handy instruments which simulate RTD at 12 discrete calibration points (CPs) for the calibration of electronic temperature indicators, recorders and controllers.

Features

  • Precisely sources ohm or mV
  • 12 discrete calibration points (CPs)
  • Useful for quick calibration of temp. indicators
  • RTDs : Pt-100, Pt-46, Cu-53
  • Accuracy : ±0.05% of FS
  • Ultralow temperature coefficient (0.002%rdg/°C)
  • Uses 2 AAA batteries with longer life for field use
  • Customized calibration points available (subscript)

Specification

Sensor (RTDs), Standard and Range options are given below:

Sensor Options

A choice of several ranges to meet most common requirements

Sensor Options Standard Options
RTDs
Option Sensor Option Standard
P Pt 100 Option N ISA/ANSI
Q Pt 46 Option I Indian
C Cu 53 Option B British
    Option D DIN
    Option J Japanese
    Option R Russian



RANGE OPTIONS

  • The Calibration Points in °C for various Sensor Options are given in the following CP table
Range Option A B C D
Sensor Option P,Q,C P P,Q P

-50 -50 -50 -50

-25 -25 0 0

0 0 50 50

25 25 100 100

50 50 150 150

75 100 200 200

100 150 250 300

125 200 300 400

150 250 350 500

175 300 400 600

200 350 500 700

225 400 600 800

Accuracy @ operating temperature between 22-32 °C and valid for one year Calibration Cycle:

RTD - ±0.05% of f.s
Temp Co-eff < 0.002% of rdg per °C
Enclosure Size 160(L) X 70(W) X 25(H) mm

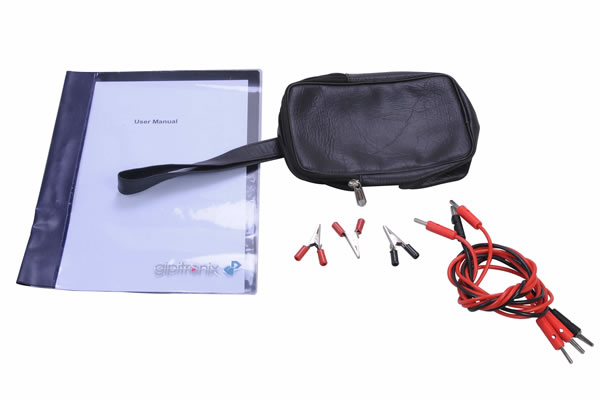

  • Leather Case
  • Probe Set
  • User Manual
  • Warranty Certificate for 2 years against Mfg defects
  • Calibration Certificate Traceable to NPL
