mV Calibrator HandyCal 38500

The Digital mV Calibrators (HandyCal 38500) are handheld, battery-operated, precision instruments designed for sourcing as well as measuring mV signal. An exceptionally stable source provides continuously variable precision mV output signal with two ten-turn potentiometers. A self-check facility establishes correct functioning of all circuit blocks. They are specially designed for cost-effective mass calibration of a select subset of a various process control instruments and systems.

Features

Precisely sources and measures mV
Range : 200mV
Resolution : 10μV
Accuracy : ± 0.02% of rdg ± 0.01% of FS ± 2 dgts
Available in 3½ and 4½ LCD Display
Useful for calibration of temperature indicators
Works as voltage regulator
Acts as T/C simulator
Suitable for mass calibration jobs during shutdowns
Uses 9V Ni-Cd battery with longer life for field use
Unique Self-Check facility ensures reliability

StartStop

Technical Specifications

Specification

Display

3½ digit	12 mm LCD with a resolution of 1 in 2,000
4½ digit	8 mm LCD with a resolution of 1 in 20,000

I/O Option	Display	Ranges	Resolution
A	3½ digits	200/20mV	1 in 2,000
D	4½ digits	200mV	1 in 20,000

Input Impedance	Voltage	> 1 Megohm
Input Protection	Voltage	Input Terminals Protected for 24 V DC in Voltage mode
Output Impedance	Voltage	< 0.05 ohm
Source Capacity	Voltage	Up to 250 mV minimum into 250Ω
at 90% Bat Volt

Accuracy and Self-Check @ operating temperature between 22-32 °C and valid for one year Calibration Cycle:

	Accuracy	Self-Check (on the display)
3½ digit	±0.05% of rdg ±0.05% of f.s. ±1 dgt	1777±1
4½ digit	±0.02% of rdg ±0.02% of f.s. ±2 dgts	17777±2

Power Supply options are as follows:

Option	Battery Type	Battery Life
A	One 9V dry cell	5 ~ 6 Hrs in continuous use
B	One 9V Ni-Cd cell	12 ~ 15 Hrs in continuous use

Low Battery	Indicated by lighting all decimals or "LO BAT" indicator
Mains Operation	A Jack is provided for an external Battery Eliminator/Charger

Rated Temp	5 to 55 °C
Humidity	< 90% RH (Non-Condensing)
Zero Drift	< 1dgt for every 10°C beyond the specified ambient of 22 - 32 °C
Span Drift	< 0.0015% of rdg / °C
Storage Temp	0 to 70 °C (Without Batteries)

Enclosure Size	75(W) x 150(H) x 50(D) mm
Enclosure Finish	Powder Coated
Enclosure Weight	0.6 Kg (Without Batteries & Accessories)

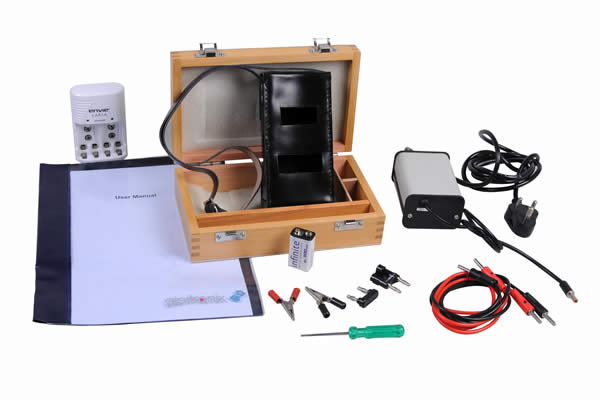

Battery eliminator
One 9V battery - dry OR rechargeable (with charger)
Probe set
Durable leather case
Specially designed wooden box
User Manual
Warranty Certificate for 2 years against Mfg defects
Calibration Certificate Traceable to NPL
